Team Plus Wheel Turtle Pro Tyre Temperature System (set of 4) Kit
Team Plus Wheel Turtle Pro Tyre Temperature System (set of 4) Kit
Couldn't load pickup availability
Team Plus Pty Ltd (Team Plus) is an Australian small business engaged in the production, sale and support of Automotive Telemetry focused Race and Track Products.
The Team Plus Telemetry solutions business grew from the support provided to motorsports teams across Australia, and offer products (applications and hardware) that help support motorsport and vehicle enthusiasts get access to information and technology only available to high end motorsport teams in the past at a price that is affordable.
Team Plus is a small family business located in Australia manufacturing and selling exclusive Australian Designed and built products and utilising customised software.

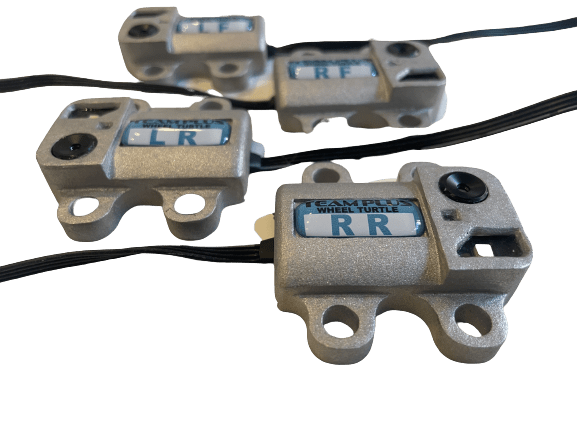

The Team Plus™ WHEEL TURTLE™ PRO is an innovative sensor module designed to mount in a wheel arch. Each WHEEL TURTLE™ collects data on 8 Temperature points across the face of each tyre, plus distance to wheel for suspension movement and tyre colour RGB values.
These values are sent via Bluetooth and can be
-
- Viewed live on Team Plus™ TELDASH™ phone app
- Logged and/or remote viewed using TELEDASH phone app or Team Plus™ TELELOGGER™
- Integrated to your CANbus Dash or Logger
The model features:
-
- Temps per tyre: 8 + Distance and RGB Colour
- Update Rate: 15Hz
- Case: Alloy
- Power Source: Hard Wired 12V
- Sensor Head: Fixed
- Dimensions: mm 47(L) x 50(W) x 13(H)
Details of the included parts in the kit are below:
Description

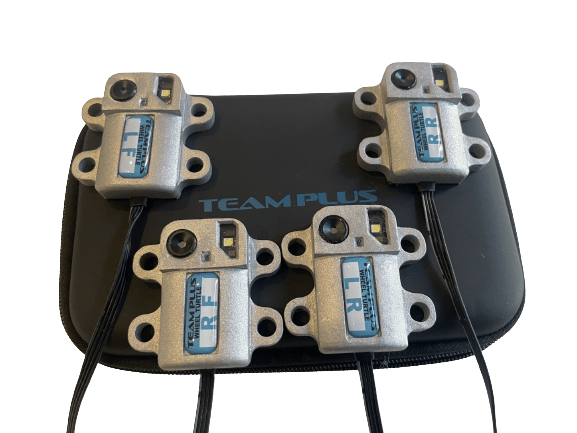

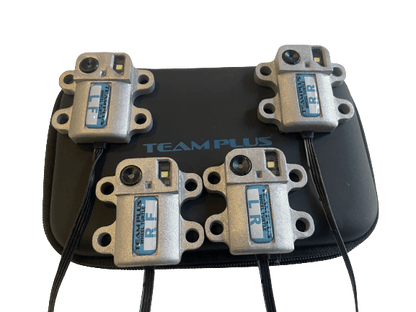

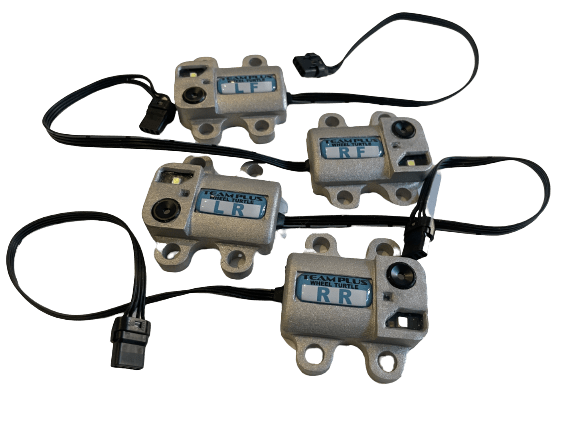

The Team Plus™ WHEEL TURTLE™ Pro Tyre Temperature System is a set of 4 innovative sensor modules to mount in each wheel arch sending:
- 8 Temperatures across the face of each tyre dynamically
- distance to wheel for suspension movement
- tyre colour RGB values.
- 15Hz update rate over bluetooth
Tyre temperature data is critical for driver improvement, using the data to learn to warm tyres correctly and keeping them in the best traction window for races and qualifying. The data collected by The Team Plus™ WHEEL TURTLES™ it is critical for Engineers, to help setup wheel and tyre settings, highlighting excess heat on inside or outside of tyre and peak temperatures during a session live or by recorded data.
The WHEEL TURTLE™ stream LIVE to the Team Plus™ TELDASH™ smart phone app. From the app you can:
- Read temperatures on each tyre in graphical format
- View colour coded temperatures with configurable thresholds for Blue (cold), Green (ideal), Orange (warning), and Red (over temp)
- Record peak(max) temperatures for each of the 32 temperatures, for easy review after drive.
- Watch live Thermal Image for any tyre
- View location and Motion Data
- Record your on track session data on the phone
- Live stream to friends or teammates
- Save and send recordings to another device
The WT PRO model features:
- Tough Aluminium enclosure sealed unit.
- Hardwired Power cable with supplied wiring kit.
- 47mm(L) x 50mm(W) x 13mm(H)
- 110 degree field of vision.
The wheel data is sent via Bluetooth 4 at around 10 times per second and can be:
-
- Viewed live on Team Plus™ TELDASH™ phone app
- Logged and/or remote viewed using TELEDASH phone app or Team Plus™ TELELOGGER™
- Integrated to your CANbus Dash or Logger

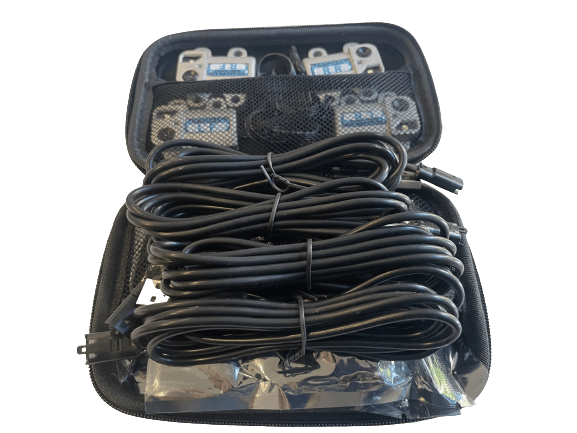

In the Box:

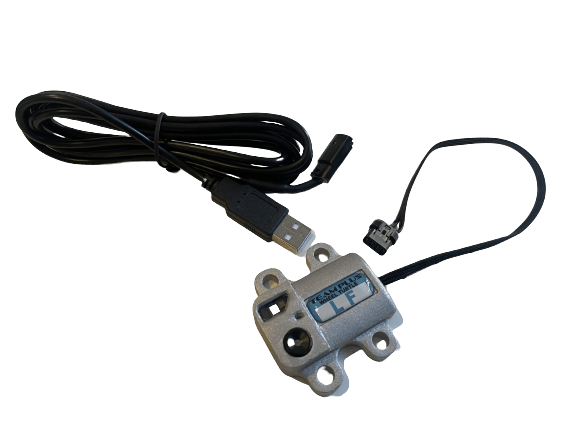

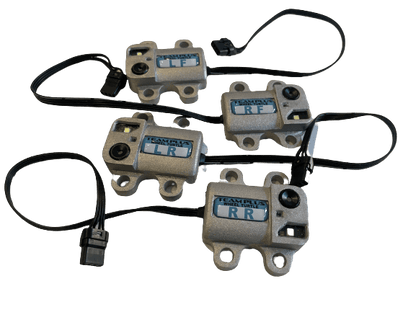

4 Wheel Turtles, 1 Carry Case, 4 x cables to connect to USB outlet, 2 x 12V to dual USB power adapters (one for front and one for back of car), Quick Start Card with QR Code to Instruction Guides.
