SCC Wheel Spacer Set | LK 120/5 NLB 72.6 | 20mm

SCC Wheel Spacer Set | LK 120/5 NLB 72.6 | 20mm

$179.00 AUD
$179.00 AUD
Sale Sold out
Tax included.
View full details

SCC is Germany's largest manufacturer of wheel spacer and adaptor systems. With the SCC wheel spacers installed, your car will both look and perform better than it ever has before.

PRODUCT INFORMATION

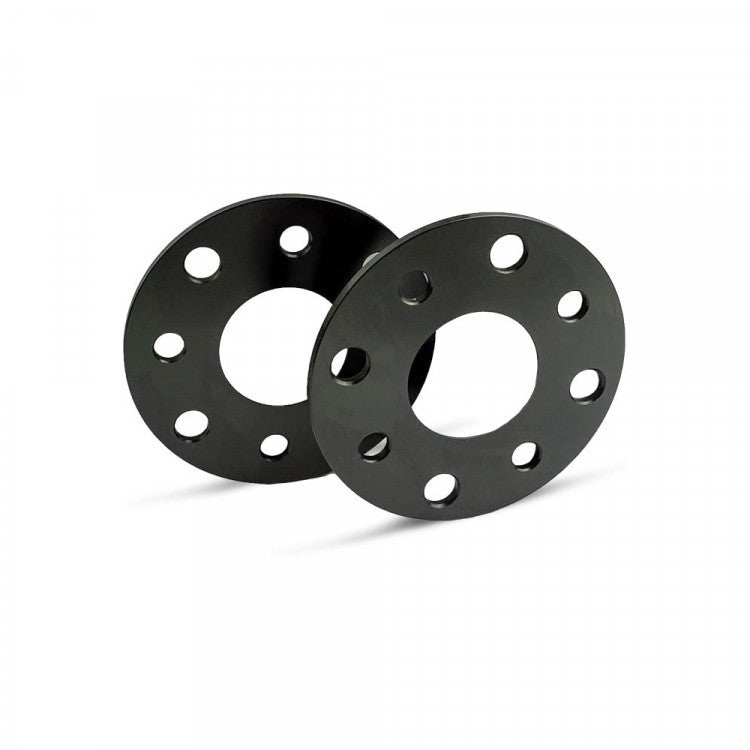

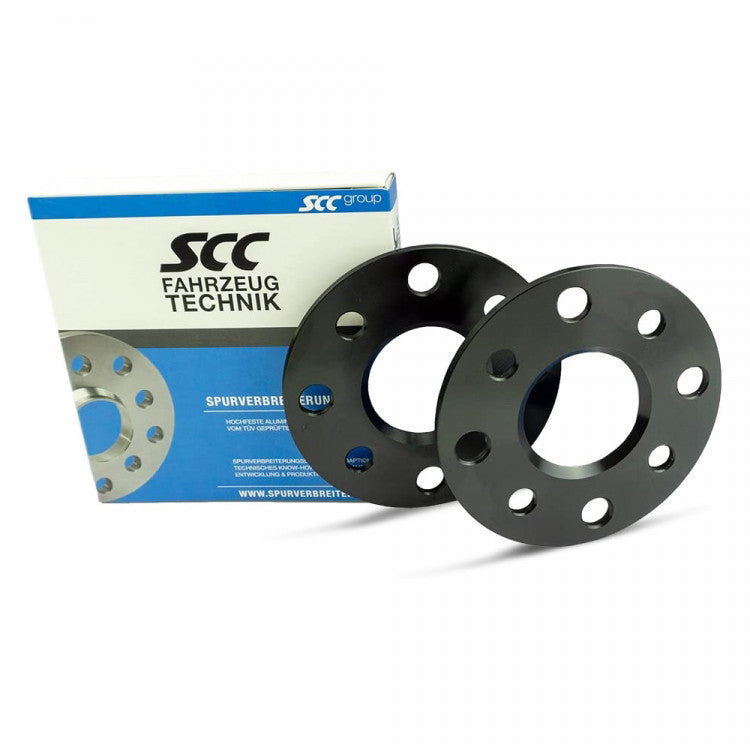

SCC WHEEL SPACERS | SYSTEM 5

The SCC System 5 non-hub centric wheel spacers are designed for optimum driving behaviour and safety. The rim is centered using the vehicle hub, which is typically long enough for anything less than a 10mm spacer. Extended wheel bolts are additionally required.

Spacer Size 20mm (40mm Per Axle)
Bolt Pattern 5 x 120mm
Centre Bore 72.6mm
Colour Black Anodized
Contents 2 Spacers (1 Axle) Per Kit

Features

  • High strength, light weight aluminum/ magnesium alloy.
  • Precision CNC machined.
  • Includes detailed mounting instructions for quick and easy installation.
  • Delivered with TUV or ABE approval.
  • Engineered, manufactured and tested in Germany.

WHEEL MOUNTING INFORMATION

This spacer set is suitable for use on the following vehicles in combination with the applicable size wheel bolts.


Wheel Bolt M12x1.5mm

Suitable for most BMW models (E-Series) built until 2012.

Length 28mm
Head Size 17mm
Head Shape Cone 60°
Colour Black
Set Quantity 10 Wheel Bolts

Suitable Models

  • E82, E87 & E88 1 Series including 1 Series M (1M)
  • E36 3 Series including M3
  • E46 3 Series including M3
  • E90, E91, E92 & E93 3 Series including M3
  • E60 & E61 5 Series including M5
  • E63 & E64 6 Series including M6
  • E38 7 Series
  • E31 8 Series
  • E84 X1
  • E36/7/8 Z3 including Z3M
  • E85 & E86 Z4 including Z4M
  • E89 Z4
  • E52 Z8

Wheel Bolt M14x1.25mm

Suitable for most BMW models (F-Series and G-Series) built after 2012.

Length 30mm
Head Size 17mm
Head Shape Cone 60°
Colour Black or Silver
Set Quantity 10 Wheel Bolts

Suitable Models

  • F20 1 Series
  • F22 & F23 2 Series
  • F87 M2, M2 Competiton and M2 CS
  • F30, F31 & F34 3 Series
  • F80 M3 and M3 CS
  • F32, F33 & F36 4 Series
  • F82 & F83 M4, M4 CS and M4 GTS
  • F07, F10 & F11 5 Series including M5
  • F06, F12 & F13 6 Series including M6
  • F01 & F02 7 Series
  • F25 X3
  • F26 X4
  • E70 X5M (This spacer kit is suitable for the rear only)
  • E71 X6 & X6M (This spacer kit is suitable for the rear only)
  • Mini R60 Countryman
  • Mini R61 Paceman

Wheel Bolt M14x1.5mm

Suitable for select BMW models (E-Series) until 2012.

Length 33mm
Head Size 17mm
Head Shape Cone 60°
Colour Black or Silver
Set Quantity 10 Wheel Bolts

Suitable Models

  • E65 & E66 7 Series
  • E83 X3
  • E53 X5

Note: Fitment may not be possible on certain rim or hub types due to the low wheel spacer thickness. Modifications or larger spacers may be required. Please contact us if you have any questions.

Models
  • 1 Series / E82 / E88 (2007-2013) / 1 Series M (1M)
  • 1 Series / E82 / E88 (2007-2013) / 135i N54
  • 1 Series / E82 / E88 (2007-2013) / 135i N55
  • 1 Series / E82 / E88 (2007-2013) / 125i
  • 1 Series / E82 / E88 (2007-2013) / 120i
  • 1 Series / E87 (2004-2011) / 130i
  • 1 Series / E87 (2004-2011) / 120i
  • 1 Series / E87 (2004-2011) / 118i
  • 1 Series / E87 (2004-2011) / 116i
  • 1 Series / E87 (2004-2011) / 123d
  • 1 Series / E87 (2004-2011) / 120d
  • 1 Series / E87 (2004-2011) / 118d
  • 1 Series / F20 (2012-2019) / M140i
  • 1 Series / F20 (2012-2019) / M135i
  • 1 Series / F20 (2012-2019) / 125i
  • 1 Series / F20 (2012-2019) / 120i
  • 1 Series / F20 (2012-2019) / 118i
  • 1 Series / F20 (2012-2019) / 116i
  • 1 Series / F20 (2012-2019) / 118d
  • 2 Series / F22 / F23 (2014-2021) / M240i
  • 2 Series / F22 / F23 (2014-2021) / M235i
  • 2 Series / F22 / F23 (2014-2021) / 230i
  • 2 Series / F22 / F23 (2014-2021) / 228i
  • 2 Series / F22 / F23 (2014-2021) / 220i
  • 2 Series / F22 / F23 (2014-2021) / 220d
  • 2 Series / F87 M2 (2016-2021) / M2 Competition
  • 2 Series / F87 M2 (2016-2021) / M2
  • 2 Series / F87 M2 (2016-2021) / M2 CS
  • 3 Series / E36 (1991-1999) / M3
  • 3 Series / E36 (1991-1999) / 328i
  • 3 Series / E36 (1991-1999) / 325i
  • 3 Series / E36 (1991-1999) / 320i
  • 3 Series / E36 (1991-1999) / 323i
  • 3 Series / E36 (1991-1999) / 318is
  • 3 Series / E36 (1991-1999) / 318i
  • 3 Series / E36 (1991-1999) / 316i
  • 3 Series / E36 (1991-1999) / 323ti
  • 3 Series / E36 (1991-1999) / 318ti
  • 3 Series / E46 (1998-2006) / M3
  • 3 Series / E46 (1998-2006) / M3 CSL
  • 3 Series / E46 (1998-2006) / 330i / 330Ci
  • 3 Series / E46 (1998-2006) / 328i / 328Ci
  • 3 Series / E46 (1998-2006) / 325i / 325Ci
  • 3 Series / E46 (1998-2006) / 323i / 323Ci
  • 3 Series / E46 (1998-2006) / 320i / 320Ci
  • 3 Series / E46 (1998-2006) / 318i
  • 3 Series / E46 (1998-2006) / 325ti
  • 3 Series / E46 (1998-2006) / 318ti
  • 3 Series / E46 (1998-2006) / 316ti
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / M3
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 335i N54
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 335i N55
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 330i
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 325i
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 323i
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 320i
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 320d
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 330d
  • 3 Series / F30 / F31 / F34 (2012-2018) / 340i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 335i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 330i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 328i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 320i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 318i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 316i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 318d
  • 3 Series / F30 / F31 / F34 (2012-2018) / 320d
  • 3 Series / F30 / F31 / F34 (2012-2018) / ActiveHybrid 3
  • 3 Series / F80 M3 (2014-2019) / M3
  • 3 Series / F80 M3 (2014-2019) / M3 Competition
  • 3 Series / F80 M3 (2014-2019) / M3 CS
  • 4 Series / F32 / F33 / F36 (2014-2020) / 440i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 435i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 430i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 428i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 420i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 420d
  • 4 Series / F82 / F83 (2014-2019) / M4
  • 4 Series / F82 / F83 (2014-2019) / M4 Competition
  • 4 Series / F82 / F83 (2014-2019) / M4 CS
  • 4 Series / F82 / F83 (2014-2019) / M4 GTS
  • 5 Series / E60 / E61 (2003-2010) / M5
  • 5 Series / E60 / E61 (2003-2010) / 550i
  • 5 Series / E60 / E61 (2003-2010) / 545i
  • 5 Series / E60 / E61 (2003-2010) / 540i
  • 5 Series / E60 / E61 (2003-2010) / 530i
  • 5 Series / E60 / E61 (2003-2010) / 525i
  • 5 Series / E60 / E61 (2003-2010) / 523i
  • 5 Series / E60 / E61 (2003-2010) / 530d
  • 5 Series / E60 / E61 (2003-2010) / 520d
  • 5 Series / F07 / F10 / F11 (2010-2017) / M5
  • 5 Series / F07 / F10 / F11 (2010-2017) / 550i
  • 5 Series / F07 / F10 / F11 (2010-2017) / 535i
  • 5 Series / F07 / F10 / F11 (2010-2017) / 528i
  • 5 Series / F07 / F10 / F11 (2010-2017) / 520i
  • 5 Series / F07 / F10 / F11 (2010-2017) / 535d
  • 5 Series / F07 / F10 / F11 (2010-2017) / 530d
  • 5 Series / F07 / F10 / F11 (2010-2017) / 520d
  • 6 Series / E63 / E64 (2003-2010) / M6
  • 6 Series / E63 / E64 (2003-2010) / 650i
  • 6 Series / E63 / E64 (2003-2010) / 645Ci
  • 6 Series / F06 / F12 / F13 (2011-2018) / M6
  • 6 Series / F06 / F12 / F13 (2011-2018) / 650i
  • 6 Series / F06 / F12 / F13 (2011-2018) / 640i
  • 6 Series / F06 / F12 / F13 (2011-2018) / 640d
  • 7 Series / E38 (1994-2001) / L7
  • 7 Series / E38 (1994-2001) / 750i / 750iL
  • 7 Series / E38 (1994-2001) / 740i / 740iL
  • 7 Series / E38 (1994-2001) / 735i / 735iL
  • 7 Series / E38 (1994-2001) / 730i / 730iL
  • 7 Series / E65 / E66 (2001-2008) / 760Li
  • 7 Series / E65 / E66 (2001-2008) / 750i / 750Li
  • 7 Series / E65 / E66 (2001-2008) / 745i / 745Li
  • 7 Series / E65 / E66 (2001-2008) / 740i / 740Li
  • 7 Series / E65 / E66 (2001-2008) / 735i / 735Li
  • 7 Series / F01 / F02 (2008-2016) / 760Li
  • 7 Series / F01 / F02 (2008-2016) / 750i / 750Li
  • 7 Series / F01 / F02 (2008-2016) / 740i / 740Li
  • 7 Series / F01 / F02 (2008-2016) / 730d
  • 8 Series / E31 (1990-1999) / 850CSi
  • 8 Series / E31 (1990-1999) / 850Ci
  • 8 Series / E31 (1990-1999) / 850i
  • 8 Series / E31 (1990-1999) / 840Ci
  • X1 Series / E84 (2009-2015) / X1 28i
  • X1 Series / E84 (2009-2015) / X1 25i
  • X1 Series / E84 (2009-2015) / X1 20i
  • X1 Series / E84 (2009-2015) / X1 18i
  • X1 Series / E84 (2009-2015) / X1 23d
  • X1 Series / E84 (2009-2015) / X1 20d
  • X1 Series / E84 (2009-2015) / X1 18d
  • X3 Series / E83 (2003-2010) / X3 30Si
  • X3 Series / E83 (2003-2010) / X3 30i
  • X3 Series / E83 (2003-2010) / X3 25Si
  • X3 Series / E83 (2003-2010) / X3 25i
  • X3 Series / E83 (2003-2010) / X3 30d
  • X3 Series / E83 (2003-2010) / X3 20d
  • X3 Series / F25 (2011-2017) / X3 28i
  • X3 Series / F25 (2011-2017) / X3 20i
  • X3 Series / F25 (2011-2017) / X3 30d
  • X3 Series / F25 (2011-2017) / X3 20d
  • X4 Series / F26 (2014-2018) / X4 35i
  • X4 Series / F26 (2014-2018) / X4 20i
  • X4 Series / F26 (2014-2018) / X4 35d
  • X4 Series / F26 (2014-2018) / X4 30d
  • X4 Series / F26 (2014-2018) / X4 20d
  • X5 Series / E53 (1999-2006) / X5 4.8is
  • X5 Series / E53 (1999-2006) / X5 4.6is
  • X5 Series / E53 (1999-2006) / X5 4.4i
  • X5 Series / E53 (1999-2006) / X5 3.0i
  • X5 Series / E53 (1999-2006) / X5 3.0d
  • X5 Series / E70 (2007-2013) / X5M
  • X6 Series / E71 (2008-2014) / X6M
  • X6 Series / E71 (2008-2014) / X6 50i
  • X6 Series / E71 (2008-2014) / X6 35i
  • X6 Series / E71 (2008-2014) / X6 M50d
  • X6 Series / E71 (2008-2014) / X6 40d
  • X6 Series / E71 (2008-2014) / X6 35d
  • X6 Series / E71 (2008-2014) / X6 30d
  • Z Series / E36/7/8 Z3 (1995-2002) / Z3M
  • Z Series / E36/7/8 Z3 (1995-2002) / Z3 3.0i
  • Z Series / E36/7/8 Z3 (1995-2002) / Z3 2.8i
  • Z Series / E36/7/8 Z3 (1995-2002) / Z3 2.2i
  • Z Series / E36/7/8 Z3 (1995-2002) / Z3 2.0i
  • Z Series / E36/7/8 Z3 (1995-2002) / Z3 1.9i
  • Z Series / E52 Z8 (1999-2002) / Z8
  • Z Series / E52 Z8 (1999-2002) / ALPINA Z8
  • Z Series / E85 / E86 Z4 (2002-2008) / Z4M
  • Z Series / E85 / E86 Z4 (2002-2008) / Z4 3.0Si
  • Z Series / E85 / E86 Z4 (2002-2008) / Z4 3.0i
  • Z Series / E85 / E86 Z4 (2002-2008) / Z4 2.5Si
  • Z Series / E85 / E86 Z4 (2002-2008) / Z4 2.5i
  • Z Series / E89 Z4 (2009-2016) / Z4 35is
  • Z Series / E89 Z4 (2009-2016) / Z4 35i
  • Z Series / E89 Z4 (2009-2016) / Z4 30i
  • Z Series / E89 Z4 (2009-2016) / Z4 28i
  • Z Series / E89 Z4 (2009-2016) / Z4 23i
  • Z Series / E89 Z4 (2009-2016) / Z4 20i
  • MINI / R60 Countryman (2010-2016) / Cooper D
  • MINI / R60 Countryman (2010-2016) / Cooper SD
  • MINI / R60 Countryman (2010-2016) / Cooper
  • MINI / R60 Countryman (2010-2016) / Cooper S
  • MINI / R60 Countryman (2010-2016) / JCW
  • MINI / R61 Paceman (2012-2016) / Cooper
  • MINI / R61 Paceman (2012-2016) / Cooper S
  • MINI / R61 Paceman (2012-2016) / JCW
